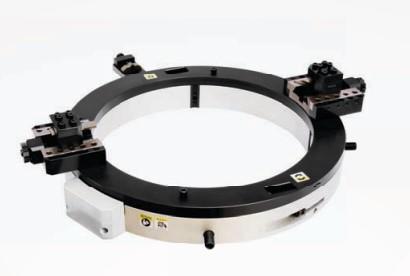

SPLIT FRAME MACHINES
The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the
machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The
equipment performs precision in-line cut or simultaneous cut/bevel, single cut/bevel, single point, counterbore and flange
facing operations, as well as weld end preparation on open ended pipe, ranging from 3/4 to 60 inches O.D.(DN20-1500), on
most wall thicknesses and material.
Drive Options: Pneumatic, Hydraulic, and Electric
Air requirement: 1500L-3000L Per minute @0.6/0.7Mpa
(55-110CFM,90PSI)
Hydraulic requirement: 2-32L per minute @6-12.5Mpa
Electric requirement:220-240V 1PH 50/60HZ
Feed mode: Star wheel, automatically
Feed rate: Fixed@0.083mm per circle
Drive Options: Pneumatic, Hydraulic, and Electric
Air requirement: 1500L-3000L Per minute @0.6/0.7Mpa
(55-110CFM,90PSI)
Hydraulic requirement: 2-32L per minute @6-12.5Mpa
Electric requirement:220-240V 1PH 50/60HZ
Feed mode: Star wheel, automatically
Feed rate: Fixed@0.083mm per circle
Entire Range: 02 - 48 covering with 17 Model Machines
